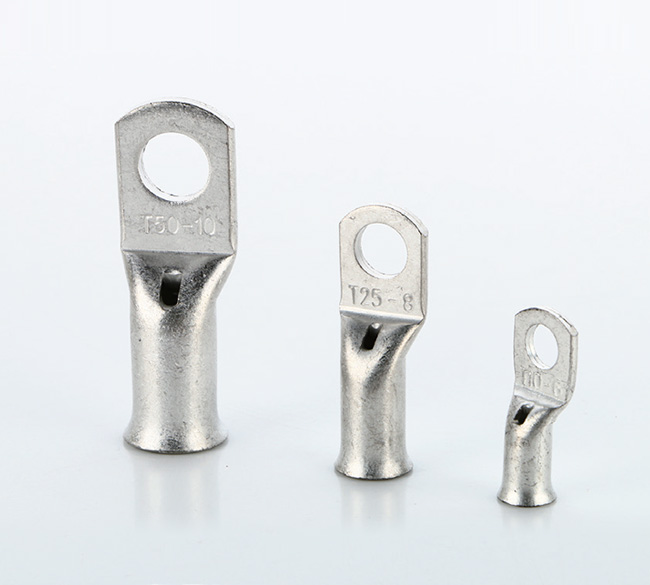

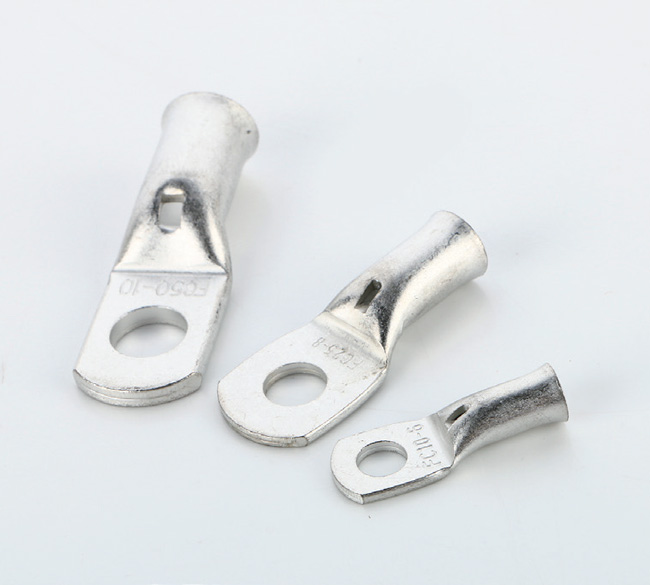

型号 Item No. |
尺寸 DIMENSION |
|||||

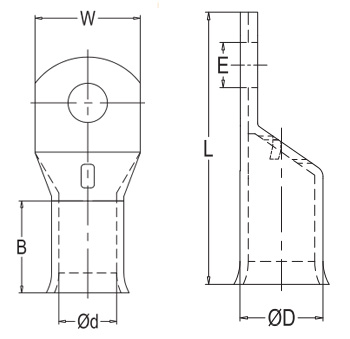

| E | φD | φd | W | B | L | |
| TT10-6 | 6.4 | 6.9 | 4.7 | 11.9 | 12.0 | 28.0 |
|
TT10-8 |
8.3 |
6.9 |
4.7 |
13.5 |
12.0 |
31.0 |
|
TT16-6 |
6.4 |
7.8 |
5.6 |
11.9 |
17.0 |
33.0 |
|
TT16-8 |
8.3 |
7.8 |
5.6 |
13.5 |
17.0 |
37.0 |
|
TT16-10 |
10.5 |
7.8 |
5.6 |
16.0 |
17.0 |
38.0 |
|
TT25-8 |
8.3 |
9.5 |
7.1 |
14.0 |
18.0 |
39.0 |
|
TT25-10 |
10.5 |
9.5 |
7.1 |
16.0 |
18.0 |
42.0 |
|
TT35-8 |
8.3 |
11.0 |
8.2 |
16.5 |
19.0 |
42.0 |
|
TT35-10 |
10.5 |
11.0 |
8.2 |
16.5 |
19.0 |
46.0 |
|
TT50-10 |
10.5 |
12.5 |
9.5 |
17.9 |
22.0 |
51.0 |
|
TT50-12 |
13.0 |
12.5 |
9.5 |
17.9 |
22.0 |
51.0 |
|
TT70-10 |
10.5 |
15.0 |
11.5 |
22.0 |
22.0 |
54.0 |
|
TT70-12 |
13.0 |
15.0 |
11.5 |
22.0 |
22.0 |
54.0 |
|
TT95-14 |
14.5 |
17.0 |
13.5 |
24.7 |
27.0 |
72.0 |
|
TT95-16 |
16.5 |
17.0 |
13.5 |
24.7 |
27.0 |
72.0 |
|
TT120-14 |
14.5 |
20.0 |
15.6 |
28.9 |
29.0 |
74.0 |
|
TT120-16 |
16.5 |
20.0 |
15.6 |
28.9 |
29.0 |
74.0 |
|
TT150-14 |
14.5 |
21.0 |
16.5 |
30.4 |
28.0 |
84.0 |
|
TT150-16 |
16.5 |
21.0 |
16.5 |
30.4 |
28.0 |
84.0 |
|
TT185-16 |
16.5 |
23.6 |
18.4 |
34.0 |
42.0 |
92.0 |
|
TT240-16 |
16.5 |
26.4 |
21.2 |
41.0 |
45.0 |
98.0 |
|
S-TT-6/4 |
4.3 |
5.5 |
3.8 |
10.3 |
11.0 |
25.0 |
|
S-TT-6/5 |
5.3 |
5.5 |
3.8 |
10.3 |
11.0 |
25.0 |
|
S-TT-6/6 |
6.4 |
5.5 |
3.8 |
10.3 |
11.0 |
26.0 |
|
S-TT-6/8 |
8.3 |
5.5 |
3.8 |
14.0 |
11.0 |
29.0 |
|
S-TT-10/4 |
4.3 |
6.8 |
4.7 |
11.9 |
11.5 |
26.5 |
|
S-TT-10/5 |
5.3 |
6.8 |
4.7 |
11.9 |
11.5 |
27.0 |
|
S-TT-10/6 |
6.4 |
6.8 |
4.7 |
11.9 |
11.5 |
28.5 |
|
S-TT-10/8 |
8.3 |
6.8 |
4.7 |
15.0 |
11.5 |
31.5 |
|
S-TT-10/10 |
10.5 |
6.8 |
4.7 |
18.0 |
11.5 |
35.5 |
|
S-TT-16/5 |
5.3 |
7.8 |
5.6 |
11.9 |
16.5 |
32.0 |
|
S-TT-16/6 |
6.4 |
7.8 |
5.6 |
11.9 |
16.5 |
34.0 |
|
S-TT-16/8 |
8.3 |
7.8 |
5.6 |
15.0 |
16.5 |
36.5 |
|
S-TT-16/10 |
10.5 |
7.8 |
5.6 |
18.0 |
16.5 |
40.0 |
|
S-TT-25/6 |
6.4 |
9.4 |
7.1 |
13.5 |
18.0 |
36.0 |
|
S-TT-25/8 |
8.3 |
9.4 |
7.1 |
15.0 |
18.0 |
39.0 |
|
S-TT-25/10 |
10.5 |
9.4 |
7.1 |
18.0 |
18.0 |
44.0 |
|
S-TT-25/12 |
13.0 |
9.4 |
7.1 |
21.0 |
18.0 |
46.0 |
|
S-TT-35/6 |
6.4 |
11.3 |
8.7 |
16.0 |
19.0 |
37.0 |
|
S-TT-35/8 |
8.3 |
11.3 |
8.7 |
16.0 |
16.0 |
38.0 |
|
S-TT-35/10 |
10.5 |
11.3 |
8.7 |
19.0 |
19.0 |
45.0 |
|
S-TT-35/12 |
13.0 |
11.3 |
8.7 |
21.0 |
19.0 |
47.0 |
|
S-TT-50/6 |
6.4 |
12.6 |
9.8 |
17.9 |
22.0 |
44.0 |
|
S-TT-50/8 |
8.3 |
12.6 |
9.8 |
17.9 |
22.0 |
46.0 |
|
S-TT-50/10 |
10.5 |
12.6 |
9.8 |
20.0 |
22.0 |
50.0 |
|
S-TT-50/12 |
13.0 |
12.6 |
9.8 |
21.0 |
22.0 |
54.0 |
|
S-TT-70/8 |
8.3 |
14.7 |
11.5 |
21.5 |
23.0 |
49.0 |
|
S-TT-70/10 |
10.5 |
14.7 |
11.5 |
21.5 |
25.0 |
55.0 |
|
S-TT-70/12 |
13.0 |
14.7 |
11.5 |
21.5 |
23.0 |
55.0 |
|
S-TT-95/8 |
8.3 |
16.9 |
13.5 |
24.7 |
30.0 |
58.0 |
|
S-TT-95/10 |
10.5 |
16.9 |
13.5 |
24.7 |
30.0 |
61.0 |
|
S-TT-95/12 |
13.0 |
16.9 |
13.5 |
24.7 |
30.0 |
63.0 |
|
S-TT-95/14 |
14.5 |
16.9 |
13.5 |
24.7 |
30.0 |
67.0 |
|
S-TT-95/16 |
16.5 |
16.9 |
13.5 |
27.0 |
30.0 |
70.0 |
|
S-TT-120/10 |
10.5 |
19.9 |
15.6 |
28.9 |
30.5 |
62.0 |
|
S-TT-120/12 |
13.0 |
19.9 |
15.6 |
28.9 |
30.5 |
67.0 |
|
S-TT-120/14 |
14.5 |
19.9 |
15.6 |
28.9 |
30.5 |
74.0 |
|
S-TT-120/16 |
16.5 |
19.9 |
15.6 |
28.9 |
30.5 |
74.0 |
|
S-TT-150/10 |
10.5 |
20.9 |
16.5 |
30.4 |
38.0 |
75.0 |
|
S-TT-150/12 |
13.0 |
20.9 |
16.5 |
30.4 |
38.0 |
81.0 |
|
S-TT-150/14 |
14.5 |
20.9 |
16.5 |
30.4 |
38.0 |
85.0 |
|
S-TT-150/16 |
16.5 |
20.9 |
16.5 |
30.4 |
38.0 |
85.0 |
|
S-TT-185/12 |
13.0 |
23.7 |
18.8 |
34.0 |
41.0 |
87.0 |
|
S-TT-185/14 |
14.5 |
23.7 |
18.8 |
34.0 |
41.0 |
91.0 |
|
S-TT-185/16 |
16.5 |
23.7 |
18.8 |
34.0 |
41.0 |
92.0 |
|
S-TT-240/12 |
13.0 |
26.2 |
21.2 |
38.4 |
45.0 |
93.0 |
|
S-TT-240/14 |
14.5 |
26.2 |
21.2 |
38.4 |
45.0 |
97.0 |
|
S-TT-240/16 |
16.5 |
26.2 |
21.2 |
38.4 |
45.0 |
98.0 |
|
S-TT-240/20 |
21.0 |
26.2 |
21.2 |
38.4 |
45.0 |
98.0 |
|
S-TT-300/14 |
14.5 |
28.6 |
23.4 |
41.7 |
49.0 |
100.0 |
|
S-TT-300/16 |
16.5 |
28.6 |
23.4 |
41.7 |
49.0 |
106.0 |
|
S-TT-400/16 |
16.5 |
32.8 |
26.8 |
47.8 |
54.0 115.0 |
115.0 |
